| Quantity: | |
|---|---|
DD/DL/DJ or non-standard customization
WKDL
252926

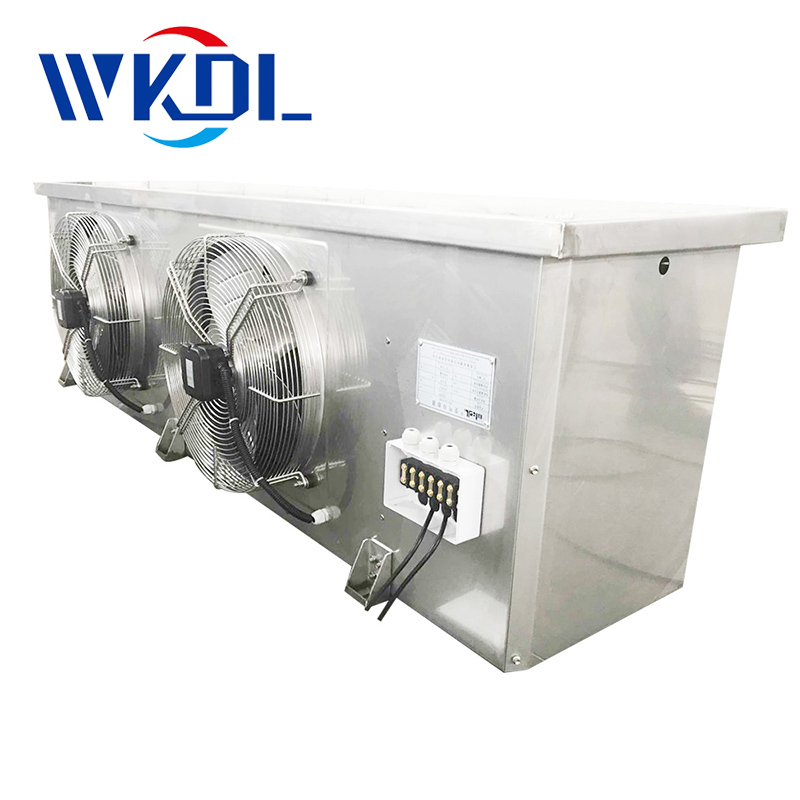

Evaporative air cooler is a suitable for a variety of cold storage cooling equipmet, it has the advantages of compact structure, light weight, no occupation of the use of cold storage area, high efficiency, the cold storage food rapid cooling, greatly improving the storage of food freshness.
| Blade material: | Aluminum or stainless steel or Nylon |
| Casing material: | Stainless steel or Galvanized steel |
| Motor voltage: | According customer's requirement |
| Bearing: | NSK or SKF |
| Protection Grade: | IP55 |
| Original: | China brand or International brand |
| Blade material: | Coated steel or Aluminum |
| Grille material: | Coated steel or Stainless steel |
| Advantages: | Lower noise, Large air volume,Saving room space, Energy efficiency Erp2015 |
| Original: | Germany Ziehlabegg or China |
| Material: | Copper |
| Tuber OD: | 5/8'' |
| Inside type: | Inner grooved tube |
| Advantages: | Increase inside heat exchange areas of tube and intensity of refrigerant. At least 15% heat transfer efficiency increased |
High Strength Tube
| Material: | 304 or 316L stainless steel |
| Tube OD: | 5/8'' |
| Test pressure: | 5.0Mpa |
| Expanding pressure: | 40Mpa |
| Advantages: | Running more safty, Better corrosion resistance, Good welding quality |
 | Coil Block·Φ16mm Copper tube or stainless steel tube. |
 | Heat Exchange Calculation Software·We can calculate cooling capacity based on your specification with the software, which is imported from Germany. |
 | Guarantee of Safe Running·Stainless steel Pipe running pressure to 5.0Mpa, Blasting pressure to 40Mpa. |
 | Stainless steel automatic welding machine
*Seamless connection and high strength. * Water tube expanding pressure to 30Mpa |
Our evaporative air cooler is widely used in cold storage refrigeration, such asfruit / vegetable / seafood / meat /fish cold storage; walk-in workshop; cold chain logistics; it also can bring fresh cool air to enterprise's workshop, public places, business and entertainment places, such as supermarket, rice factory, sauce factory and so on.
Jiangsu Victory Hot-Cooling Technology is a Manufacture + Technical Design company with over 15 years experience.
Our main products are as below :
1.What is your delivery time?
10---40days.
2.What are the payment terms?
30% T/T before production and balance before shipment
3.What is your warranty?
One year for the whole unit.
4.What is the valid time of the quotation?
One month.
5.Can we do our OEM logo?
Yes,we can do OEM logo for you.
6.Can you do our country plug?
Yes,we can do the plug according to your request without extra cost.
Contact: Lucy Zhang
Skpe: lucyzhang228627
wechat / whatsapp: 0086 15961187579
