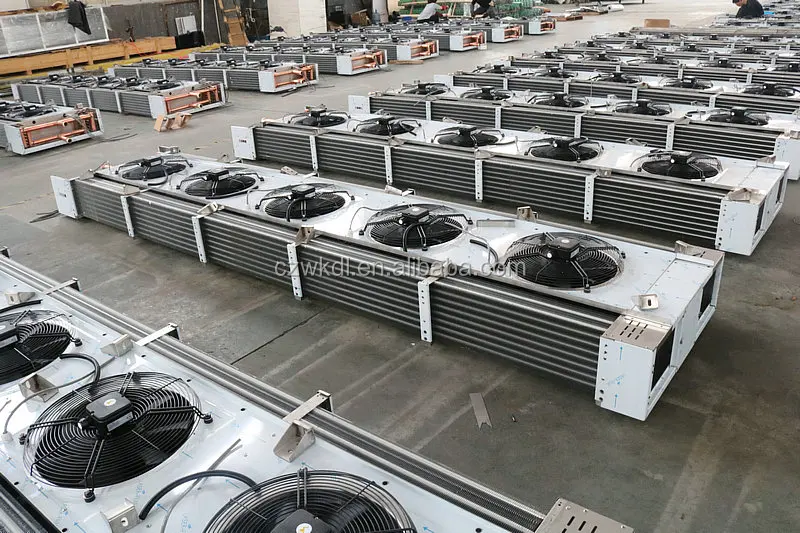

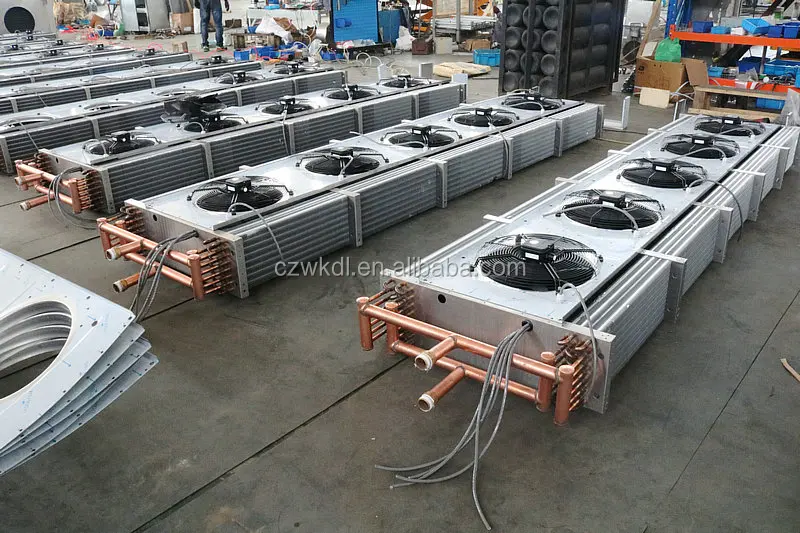

High corrosion resistant cold storage double outlet air cooling fan stainless steel fins

Availability:
Quantity:
  • DD/DL/DJ or non-standard customization

  • WKDL

  • 911210

Product Description

Air evaporator unit is widely applied to food processing, oil and energy industry, logistics & warehousing. It can be installed in cold room, warehouse, supermarket, workshop, airport , machine room etc.

DL DD DJ Series Air Cooled Evaporator :

DL Series(FPI:4.5mm): Application for -5°C~5°C cold room

DD Series(FPI:6.0mm): Application for -15°C~-20°C cold room

DJ Series(FPI:9.0mm): Application for below -25°C cold room


Our Services

Custom-made service is available. We have heat exchange software which can offer optimal solution. We can design and produce according to your requirement and specification.custom made

Our Adantage

3

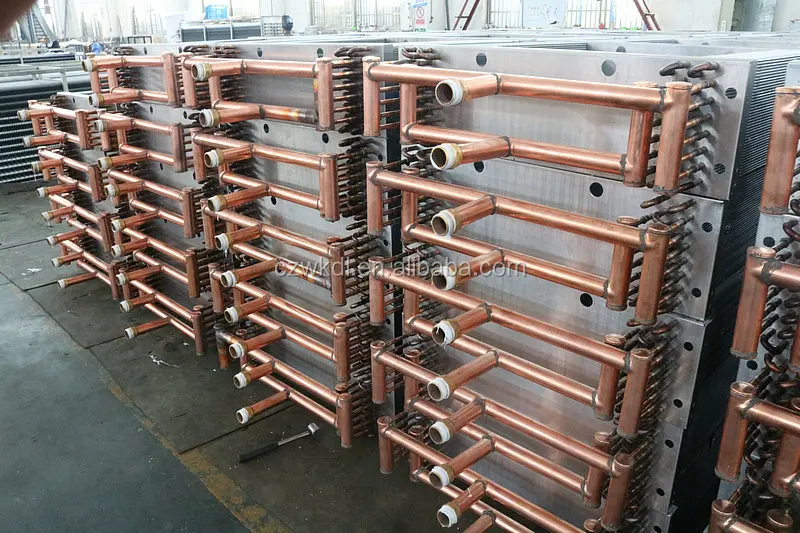

Coil Specs

*Φ15.88(16)/20/25mm Copper tube or stainless steel tube, aluminum tube, galvanized tube
*High efficiency sine wave fin with collars
*Fin material:8011, AlMg3, 304(316L), Coated.
*Fin Pitch: 4.5mm, 7mm, 10mm, 12mm,16mm,25mm etc
*Other fin pitchs can be customized by user.

Heat Exchange Calculation Software

*We can calculate cooling capacity based on your specification with heat exchange software, which is imported from Germany.

Guarantee of Safe Running

*Stainless steel Pipe running pressure to 5.0Mpa,      Blasting pressure to 40Mpa.
*Nitrogen pressure 5.0Mpa which keeping 24 hours for leaking test.

Stainless steel automatic welding machine

* Welding machine is imported from Germany

* Water tube expanding pressure to 30Mpa

Customer Case

Customer Case.jpg

Our evaporative air cooler is widely used in cold storage refrigeration, such asfruit / vegetable / seafood / meat /fish cold storage; walk-in workshop; cold chain logistics; it also can bring fresh cool air to enterprise's workshop, public places, business and entertainment places, such as supermarket,  rice factory, sauce factory and so on.

Company Information

1

Our workshop.jpg

our factory

Jiangsu Victory Hot-Cooling Technology is a Manufacture + Technical Design company with over 15 years experience.

Our main products are as below :

* Heat exchange coil in all types
* Evaporator & air cooler ; condenser
* Evaporative condenser / cooling tower


Our heat exchange coil has been exported to USA, Canada, Australia, South Africa etc.
Packaging & Shipping

Package

Package : Exporting standard wooden box package. Thick wooden box can protect evaporator in good condition during long time transporation on sea. A wooden box can be 100kg ~ 200kg, which bear high pressure.


Previous:
Next:
Our main products include Air Cooler,Blast Evaporator,IQF Tunnel Coil, Baudelot Cooler, Air Cooled Condenser, Dry Cooler and evaporative condenser etc industrial refrigeration equipment.
