DD/DL/DJ or non-standard customization
WKDL
151480

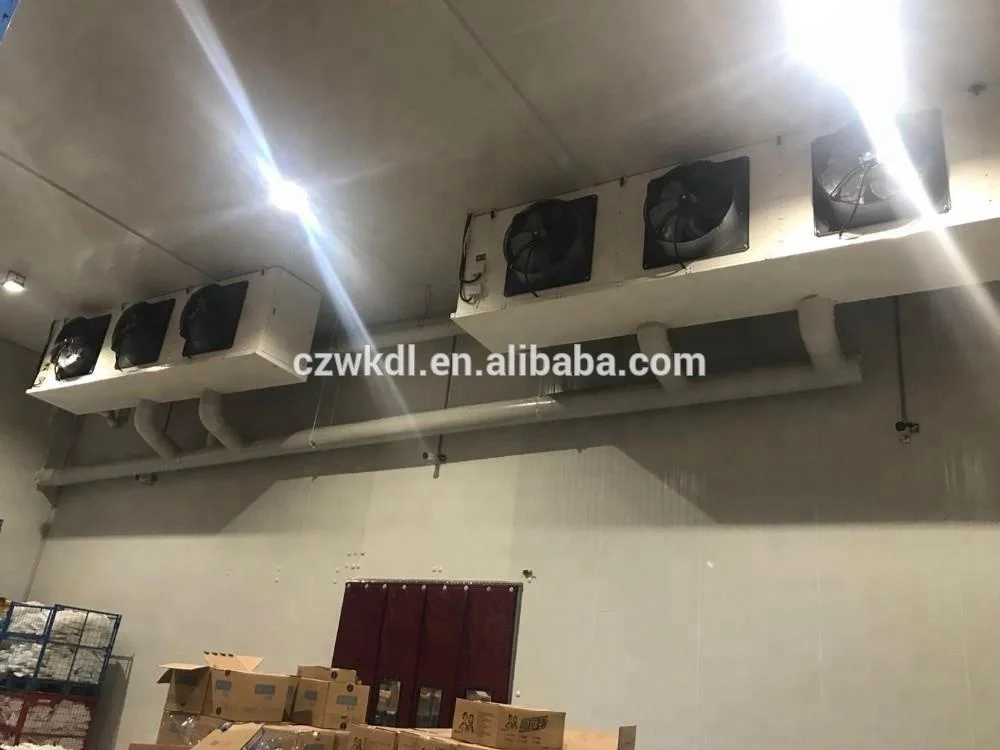

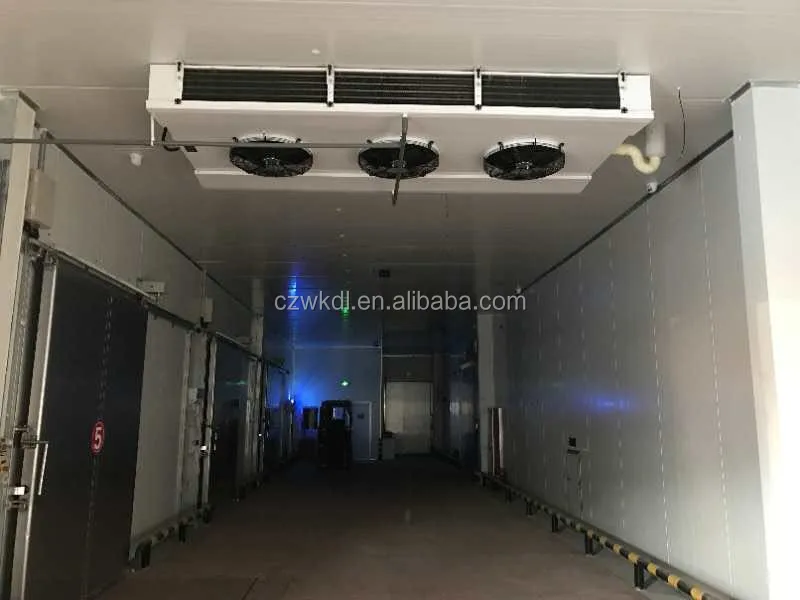

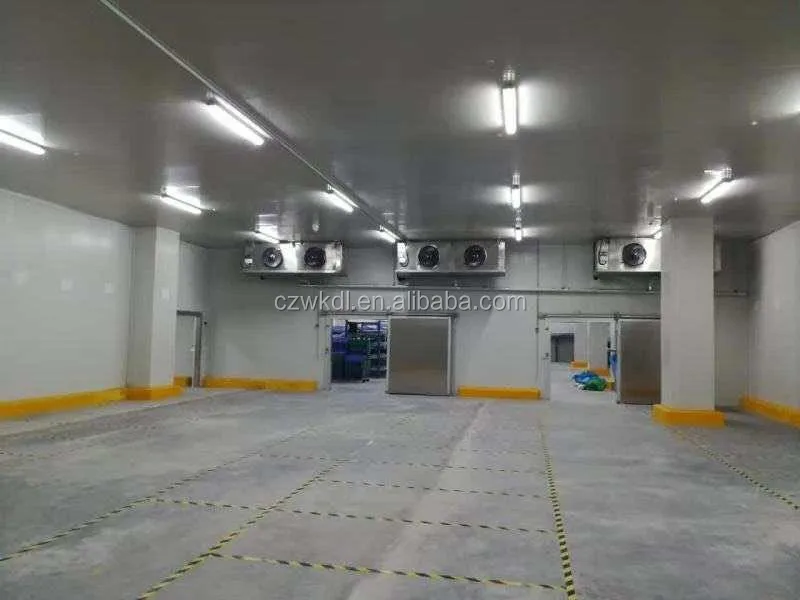

Air evaporator unit is widely applied to food processing, oil and energy industry, logistics & warehousing. It can be installed in cold room, warehouse, supermarket, workshop, airport , machine room etc.
DL DD DJ Series Air Cooled Evaporator :
DL Series(FPI:4.5mm): Application for -5°C~5°C cold room
DD Series(FPI:6.0mm): Application for -15°C~-20°C cold room
DJ Series(FPI:9.0mm): Application for below -25°C cold room
Name: Tubes
Domestic famous brand material in Copper, stainless Steel, Aluminum, Titanium etc
Dia: 15.88mm / 20mm / 25mm , we can customer made if you have good quantity.
Name: Fins
Fin material in Copper, Stainless Steel, Aluminum, Titanum etc
Structure: Corrugated with collars, which offer the biggest heat exchange area. We can customer made if you have good quantity.

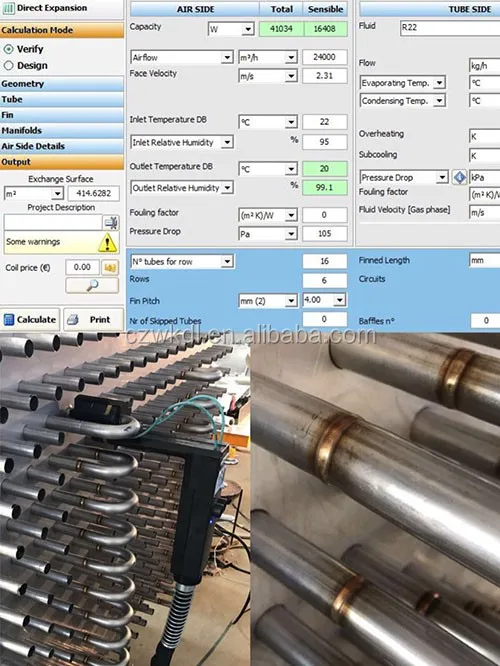

Name: Heat exchange software
We have heat exchange software which can give optimal solution. If you have specification, send to us and we will design for you with software.
Name: Stainless steel automatic welded technology
We have stainless steel automatic welded technology from Germany. It offers good appearance in connection. We have hydraulic tube expanding test ( pressure reach 30.0Mpa ) before out of factory.
| Packaging | |
| Size | customized made |
| Weight | 200kg ~ 500kg |
| Packaging Details | The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
