DD/DL/DJ or non-standard customization
WKDL
0652165
·Φ15.88mm Copper tube or stainless steel tube.

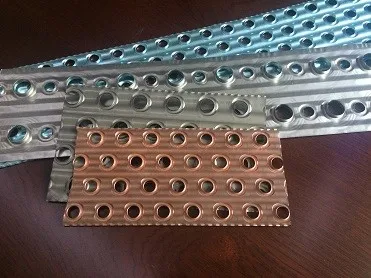

·High efficiency sine wave fin.
·Fin material:8011, AlMg3, 304(316L), Coated.
·Fin Pitch: 4.5mm, 7mm, 10mm, 12mm.
·Other fin pitchs can be customized by user.
·Sturctures and covers of Unit Cooler are designed by our 3D software .
·Our advanced coil heat exchange software can simulate your running heating conditions.
·We can provide CAD drawings and reliable data of your customized products.
·Using maintance door, checking and maintance will be easier.
·Suppport foots are consided which can provice convenience of installing and carring.
·Normal casing material is galvanized steel , power coated white RAL9018.
·Other option: Aluminum or stainless steel.
·Stainless steel Pipe running pressure to 5.0Mpa, Blasting pressure to 40Mpa.
·Nitrogen pressure 5.0Mpa which keeping 24 hours for leaking test.
·Eddy current testing provide good quality of stainless steel tube.

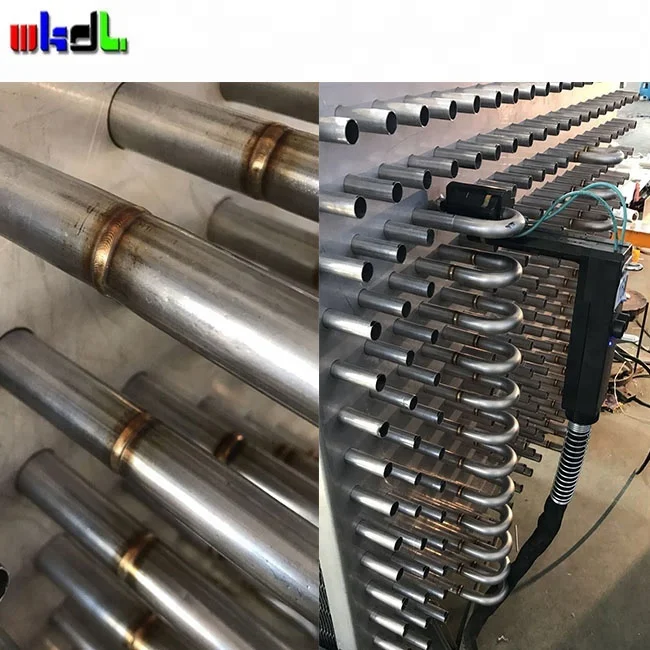

·TIG welding process of bend is fully automatic which can guarantee high strength and good apperance.
·Float-Coil Tech. which can float tubes in the centre of plate holes. Avoiding direct friction between tubes and plates which may causing leakage of tubes in process of running and transport.

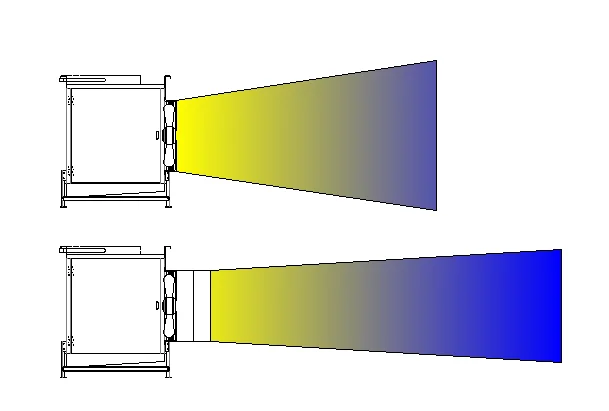

·Extended air throw streamer,air throw can reach to 70m
·Motor protection class IP54, Insulation grade F.
·Duct axical fan blades are made of casting aluminum
·Motor application temperature: -45℃~50℃.
·Lower noise fan is possible for special application conditios.
·Motor power will be changed with the change of air temperature and resistance.
·Electrical defrosting- stainless steel heating pipe, installed in fan, coil and water pan
·Water defrosting- water tray spraying

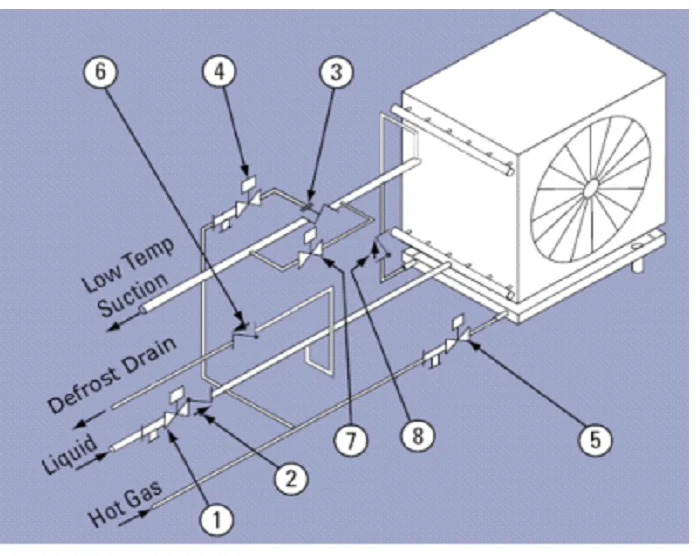

·Hot gas defrosting- hot gas pipe set in tray, energy saving and high efficient, help oil return to compressor
·Conbine different defrosting ways together
Jiangsu Victory Hot-Cooling Technology Co, Ltd is a manufacturing company with professional solutions for heat transfer applications. Victory is devoted in innovation and development on air cooler, evaporative condenser and products used in industry refrigeration region, for highest quality and competitiveness. Our successful design, manufacturing and marketing has lead to significant technological advancements, resulting in continued growth and development for the Company.
Victory is found in Jiangsu, in 1990, has a successful transition from a small proprietorship to the multimillion-dollar enterprise it is today. Victory's mission is to provide best energy-saving and highest efficiency products in following areas:
1. Food refrigeration just like meat, fish, fruit, vegetable and potato processing
2. Chemical refrigeration just like chemical gas or liquid cooling
3. Air condition system
Victory is the largest manufacturer of evaporative condenser, air cooler in China. Our products are exported to Japan, Brazil, Mexico, Russia, Singapore, Europe and so on for air condition system and food industry. Victory will provide the most advanced products in the industry-Technology for the Future!
1.What is your delivery time?
10---40days.
2.What are the payment terms?
30% T/T before production and balance before shipment
3.What is your warranty?
One year for the whole unit.
4.What is the valid time of the quotation?
One month.
5.Can we do our OEM logo?
Yes,we can do OEM logo for you.
6.Can you do our country plug?
Yes,we can do the plug according to your request without extra cost.
